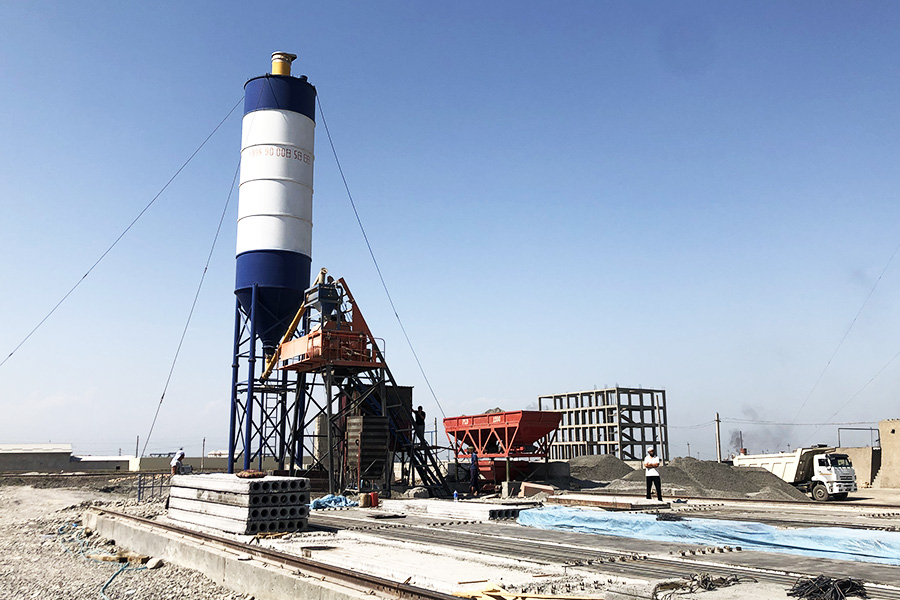

HZS35 Concrete Batching Plant

Introduction

We, HENAN ANGONG MACHINERY CO.,LTD, our HZS35 concrete batching plant is forced type high efficiency concrete production equipment. It suits for mixing dry hard, half dry hard, plastic, and other ratios of concrete with features of high production efficiency, high mixing quality, stable and reliable, long lifespan etc.

Part of Angong 35m3/h Concrete Batching Plant Features

1) The Mixing System: the mixer is JS750 twin shaft forced type which has high mixing evenness for concrete, short mixing time, long lifespan for wearing parts, easy operation and maintenance advantages. 3.8m discharging height. Adjustable hydraulic discharging door angle. High Wear-Resistant Chromium-Manganese Alloys Plates and Blades. Perfect shaft end sealing system effectively prevents leakage and guarantees the continuous long running of whole mixing system.

2) Batching System: using PLD1200 batching machine. The batching aggregates can be 2-4types. 3.5m3 Basic Storage Bins Volume，1200L Weighing Bins Volume，Full Capacity, 4kw Motor.

3) Feeding System: using hopper feeder, and our anti-block patents technology ensures forever non-block.

4) The digital weighing system is with buffering device, auto compensation function and very high weighing accuracy. The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.

5) We use the international advanced full auto SIMENS PLC+PC control model with Strong Anti-Interference Ability, High Reliability And Stability and Easy Operation features. It can also use PLC semi-auto control system or manual control system to hugely save cost.

6) All Motors, Speed Reducers, Sensors are of China Famous Brand.

7) 11 National Technical Patents Guarantee Excellent Performance.

8) Modular Design, Space-Saving Integrated Design, Easy Installation and Removal.

9) China Well-known Trademark, Brand Protected by <Paris Convention for the Protection of Industry Property.

Application

HZS35 concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, municipal projects，docks, airport, water projects, hydropower station,etc. They can also be used in precast concrete unit factories and used as commercial concrete batching plant to sell high quality concrete to different buyers.

Technical Data

		HZS35
Theory Productivity(m3/h)		25
Standard Discharging Height(m)		3.8
Mix Cycle Time(s)		72
Measurement(m)		13*13*18
Total Power(KW)		75
Mixer Model		JS750
Batching Machine Model		PLD1200
Belt Width mm		500
Belt Machine Power kW		3
Feeding Method		Hopper
Weighing Accuracy	Aggregate	≤2
	Cement and Ash Coal	≤1
	Water	≤1
	Additive	≤1
Screw Conveyor Model		LSY219 Italy Technology
Silo		2*60t Detachable Silo
Control System		Centralized Control
MOQ		1 set
Delivery Time		7days
Delivery Port		Qingdao or Tianjin
