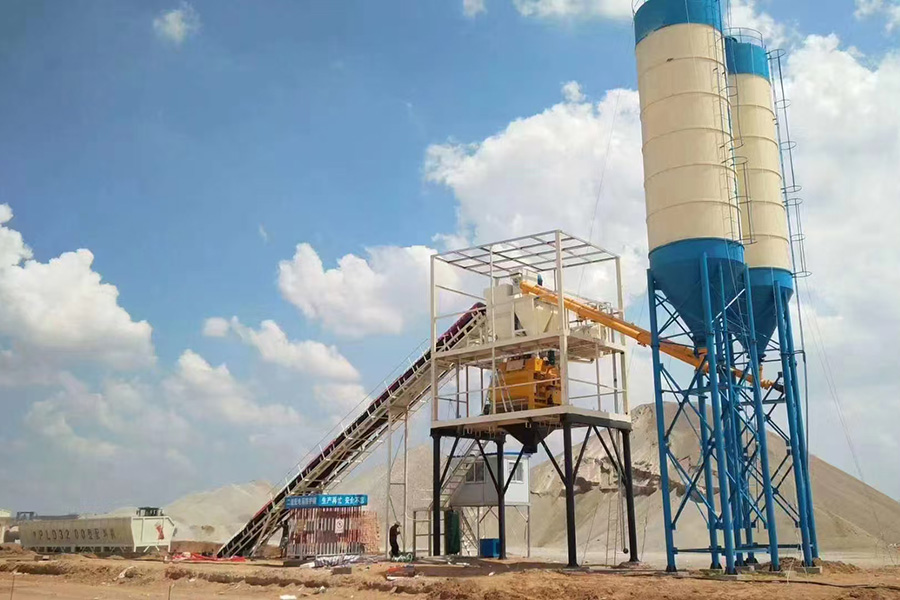

HZS120 Concrete Batching Plant

Introduction

We, HENAN ANGONG MACHINERY CO.,LTD, our HZS120 concrete batching plant is forced type high efficiency concrete production equipment. It suits for mixing dry hard, half dry hard, plastic, and other ratios of concrete with features of high production efficiency, high mixing quality, stable and reliable, long lifespan etc.

Part of Angong 120m3/h Concrete Batching Plant Features

1) The Mixing System: the mixer is SICOMA MAO 3000/2000 or JS2000 twin shaft forced type which has high mixing evenness for concrete, short mixing time, long lifespan for wearing parts, easy operation and maintenance advantages. 4.2 m discharging height. Adjustable hydraulic discharging door angle. High Wear-Resistant Chromium-Manganese Alloys Plates and Blades. Auto lubrications. The main shaft driving system refers to Italian SICOMA technology. Perfect shaft end sealing system effectively prevents leakage and guarantees the continuous long running of whole mixing system.

2) Batching System: using PLD3200 batching machine with high stability and efficiency. The batching aggregates can be 3-5types. 18m3 Basic Storage Bins Volume, 11kw Motor, Belt width of 1000mm

3) Feeding System: the feeding system is of closed belt type by continuous feeding, the angle is 17°. The belt is of china famous brand and the idler is troughed type, with belt tensioning system and cleaning system, guaranteeing the feeding efficiency and effectively longer the equipment lifespan.

4) The digital weighing system is with buffering device, auto compensation function and very high weighing accuracy. The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.

5) We use the international advanced full auto control models of integration industry computer. It is with features of Strong Anti-Interference Ability, High Reliability And Stability, Easy Operation And Maintenance, Zero-Failure Rate.

6) All Motors, Speed Reducers, Sensors are of China Famous Brand.

7) 32 National Technical Patents Guarantee Excellent Performance.

8) Modular Design, Space-Saving Integrated Design, Easy Installation and Removal.

9) Aesthetics Designed, the Color and Painted Words can be Customerized Designed by the Buyer.

10) Low Noise and Dust for Your Environmental Protection Requirement Enough.

11) China Well-known Trademark, Brand Protected by <Paris Convention for the Protection of Industry Property>.

Application

HZS120 concrete mixing plant can be used as commercial ready-mixed concrete batching plant to sell high quality concrete to different buyers. It also widely used in construction projects like buildings, roads, bridges, high way roads, municipal projects，docks, airport, water projects, hydropower station,etc.

Technical Data

		HZS120
Theory Productivity(m3/h)		120
Standard Discharging Height(m)		4.2
Mix Cycle Time(s)		60
Measurement(m)		56*23*21
Total Power(KW)		220
Mixer Model		SICOMA MAO 300/2000 or JS2000
Batching Machine Model		PLD3200 Pneumatic Independent Weighing
Belt Width mm		1000
Belt Machine Power kW		37
Feeding Method		Belt
Weighing Accuracy	Aggregate	≤2
	Cement and Ash Coal	≤1
	Water	≤1
	Additive	≤1
Screw Conveyor Model		LSY273 Italy Technology
Silo		4×100t Detachable Silo
Control System		Centralized Control
MOQ		1 set
Delivery Time		20days
Delivery Port		Qingdao or Tianjin
