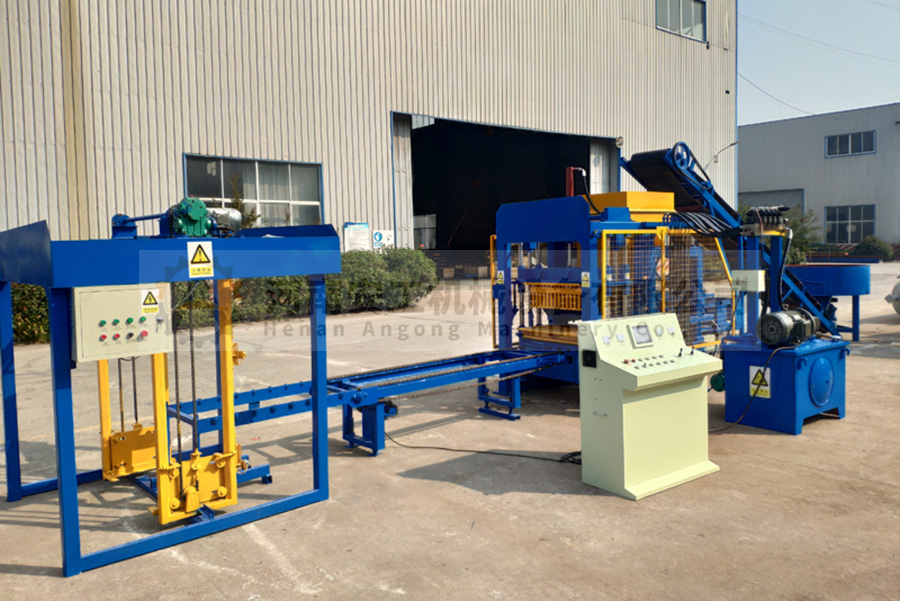

QT4-15 Automatic Block Machine Line
Share:
Main technical parameter
| Dimension of host machine | 3600x1560x2400mm | Host machine power | 22.2KW |
| Weight of host machine | 5.5T | Vibration force | 50-75KN |
| Molding period | 15-20S | Mixer model | JS500 |
| Voltage | 380V 50Hz | Pallet size | 960x550x25mm |
Theoretical production capacity
| Size(LxWxH) | Refer pic | Pcs/Mould | Pcs/Hour | Pcs/Shift(8hrs) |
| 400x200x200mm |  |
4 | 720-960 | 5760-7680 |
| 400x100x200mm | |
8 | 1440 | 11520 |
| 200x100x60 |  |
24 | 2880 | 23040 |
| 200x163x60 |  |
16 | 1440 | 11520 |
